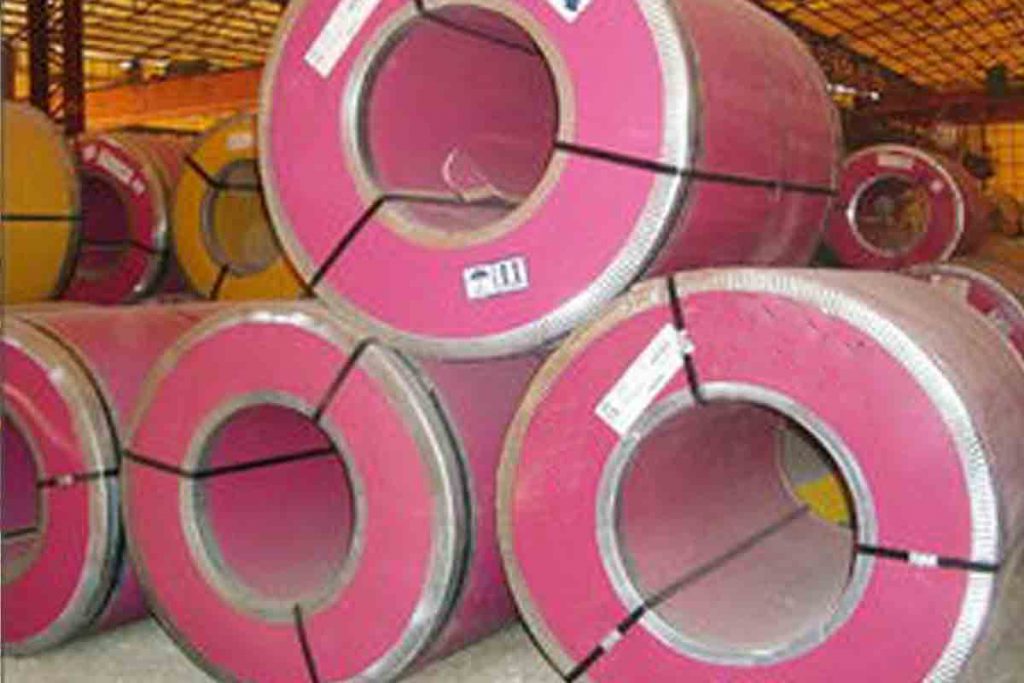

Steel coil is also called coil steel. Steel is hot pressed and cold pressed into a coil shape. In order to facilitate the storage and transportation of steel coils, the steel coils need to be packaged, and steel coil Protection Board are used here.
According to the process flow of cold rolling production of strip steel, steel coil packaging is generally located behind the leveling unit or the re-coil shearing unit, or behind the galvanizing line or color coating line. Steel coil packaging can protect the steel coils from damage during storage and transportation, but it will also increase the cost of the product. Therefore, what kind of packaging process can reduce costs.
Characteristics of Steel Coil Protection Board
The surface of steel coil Protection Board is smooth, flat, pressure-resistant, high temperature-resistant, corrosion-resistant, aging-resistant, impact-resistant, low temperature-resistant, wear-resistant, chemical corrosion-resistant, self-lubricating, and impact energy absorption. It also has the characteristics of acid resistance, waterproofness, and strong buffering. It can protect the steel coils from impact, waterproofness, and pressure without damage during storage and transportation. It is an ideal new packaging material for stainless steel plates (coils), hot and cold rolled plates (coils), galvanized plates (coils) and other steels.
Four Steps Of Steel Coil Protection Board For Workpiece Packaging
Before Protection the workpiece, it is necessary to understand the tonnage, width and diameter of the steel coil in detail and prepare the required packaging materials.
- Lift the steel coil to the packaging platform;
- Install the steel outer corner guards on both sides, standardize the position of the corner guard interface, and press it with two circumferential straps. The lock position should be at 12 o’clock on the clock as much as possible and on the same horizontal line. When the strap is tightened, the raised part of the corner guard is flattened with a rubber hammer.
- Install the inner corner guards on both sides, press the corner guard interface with a longitudinal strap, and tie the eye of the coil evenly three times. The lock position should be evenly arranged on the same circumference at the same end of the steel coil. The strap should be tightened and cannot be skewed.
- Tie the circumferential middle strap and press the longitudinal strap.
Conclusion
Compared with traditional packaging, steel coil Protection Board has the advantages of exquisite appearance, low cost, acid and alkali resistance, impact resistance, and can reduce the labor intensity of workers.
